Saa huammɔdi ahorow yi wɔ nhwɛso ahorow, na wotumi hu dodow no ara wɔ simma 30 anaa nea ennu saa mu. Wɔahyehyɛ akwankyerɛ yi atwa sɛnea ɔhaw ahorow ano aduru yɛ adwuma ankasa ho ahyia: efi ase fi nea wubetumi ahu wɔ screen so, afei yɛayɛ adwuma akɔ akyi akɔ nea ɛde ba no so. Sɛ́ ebia wobɛhwɛ soaguadi mu LCD a wɔde kyerɛ nneɛmawɔ aguadidan mu, run panels wɔ public kiosks, anaasɛ debug embedded hardware bere a wɔreyɛ no, diagnostic nhyehyɛe no yɛ ade koro.
Nsɛnkyerɛnne a Wɔde Kyerɛkyerɛ Ntɛmntɛm
Fa saa pon yi di dwuma sɛ wo filter a edi kan. Nneɛma pii a ɛde ba betumi ama woanya sɛnkyerɛnne koro, enti fa no sɛ ɔkwan a wobɛfa so afi ase, na ɛnyɛ mmuae a etwa to.
| Nsɛnkyerɛnne a ɛkyerɛ | Ɛbɛyɛ sɛ Nea Ɛde Ba | Adeyɛ a Edi Kan |
|---|---|---|
| Screen a ɛyɛ sum koraa, akyi kanea biara nni hɔ | Tumi a ɛresɛe anaasɛ fuse a abɔ | Sua input voltage wɔ module pin ahorow so |
| Screen on nanso ɛyɛ kusuu paa | Backlight asɛe anaasɛ LED array a ɛredi nkogu | Sɔ backlight circuit hwɛ wɔ ahofadi mu |
| Mfonini a ɛyɛ mmerɛw a wotumi hu wɔ kanea a wɔde tow kanea nkutoo mu | Backlight huammɔdi - panel no ankasa yɛ adwuma | Hwɛ LED strips ne draiver circuit no mu |
| Ɔyɛkyerɛ a ɛrehyerɛn anaasɛ ɛrehyerɛn | Loose ribbon cable anaasɛ unstable supply voltage | San fa nkitahodi ahorow nyinaa si hɔ; hwɛ nneɛma a wɔde ma ripple |
| Ntrɛwmu a ɛda hɔ anaasɛ ɛda fam wɔ screen no so | Substrate a apaapae anaasɛ draiver IC mfomso | Nhwehwɛmu a wɔde aniwa hu; swap draiver board no |
| Nkyerɛwde a wɔafrafra anaasɛ wɔayera | Protocol a ɛnhyia anaasɛ firmware bɔne | Hwɛ nkitahodi nhyehyɛe ahorow no ho adanse wɔ datasheet ho |
| White screen a emu nsɛm biara nni mu | Initialization huammɔdi anaasɛ sɛnkyerɛnne a ɛyera | Hwɛ protocol nhyehyɛe; si bere a wɔde reset no so dua |
| Ahonhommɔne mfonini a ɛkɔ so daa anaasɛ ɔhyew-mu | Static mfonini wɔ onyin panel so tenten dodo | Tumi kyinhyia; run pixel-san yɛ sɔhwɛ nhyehyɛe |
| Ka input a ɛnyɛ sɛ wobɛkyerɛw wo din | Touch cable a asɛe anaasɛ firmware a asɛe | Hwɛ ribbon cable no mu; re-flash touch controller a ɛwɔ hɔ |
| Random reset anaasɛ tumi cycling | Voltage spike anaasɛ mprempren ahoɔden a ɛnnɔɔso | Sua nneɛma a wɔde ma denam oscilloscope so; fa ahobammɔ a ɛfa surge ho ka ho |
Dɛn na Ɛde LCD Module Di huammɔdi Ba Ankasa?
Akyi Kanea a Ɛsɛe
Akyi kanea no yɛ ade biako-adwuma a ɛtaa di huammɔ wɔ LCD module ahorow mu. LED arrays dim nkakrankakra wɔ wɔn adwumayɛ nkwa nna - manufacturers fata nneɛma tiaJEDEC semiconductor ahotoso sɔhwɛ gyinapɛn ahorow, na nkwa nna a wɔahyɛ no gu ahorow kɛse wɔ consumer-grade ne industrial-grade panels ntam. Bere nyinaa hwɛ wo module pɔtee no datasheet ma ne rated service life wɔ wo dwumadie tebea mu, ɛnyɛ generic industry figure.
Display a akyi kanea asɛe da so ara twa anyinam ahoɔden nhwehwɛmu ahorow mu. Panel no reyɛ adwuma - ɛrentumi nyɛ mfonini a wotumi kenkan wɔ hann a atwa yɛn ho ahyia a ɛyɛ daa mu kɛkɛ. Sɛ ɛte sɛ nea screen no yɛ nea wogye tom wɔ dan a emu yɛ kusuu mu nanso ɛkame ayɛ sɛ wontumi nhu wɔ ɔfese kanea a ɛhyerɛn anaa abɔnten a, akyi kanea no ne ade a edi kan a ɛsɛ sɛ wɔsɔ hwɛ.
⚠️ Mfomso a wɔtaa di:a wɔde tua akyi kanea a ɛreyɛ ketewaa no ka denam hann a wɔpia kɔ nea ɛsen biara so. Wei ma LED wee ntɛmntɛm na ɛma mfasoɔ nkwa nna a aka a ɛwɔ ade a ɛresɛe dedaw-mu no yɛ tiaa. Hardware a wobɛpaw a ɛwɔ hann a ɛfata headroom fi mfiase no kwati ɔhaw no koraa - hwɛ nea ɛda nsowaguadi-grade LCD module ahorowefi consumer-grade akwan foforo so.
Connector ne Cable Ɔhaw ahorow
Ribbon nhama, ɔsebɔ nhama, ne solder nkwaa sɛe wɔ wosow, ɔhyew kyinhyia, ne flex a wɔsan yɛ no mu. Ɛkame ayɛ sɛ bere nyinaa na huammɔdi kwan no yɛ nea ɛkɔ so bere ne bere mu: ɛhyerɛn wɔ mmeae bi, ɔyɛkyerɛ no afã horow a ɛtɔ fam wɔ wosow ase, anaasɛ screen a ɛyɛ adwuma bere a wofi ase nanso edi nkogu wɔ ɔhyew a ɛyɛ adwuma mu. Sɛ wosan si connector biara so ansa na woakra afã horow no siesie afuw mu anwiinwii no fã kɛse bi a ɛho ka sua.
Nneɛma a Atwa Yɛn Ho Ahyia Ho Nhyɛso
Awɔw ma nsu a ɛyɛ ahwehwɛ no yɛ adwuma brɛoo; ɔhyew ma polarizer nyin ntɛmntɛm na adhesive delamination; nsuo a ɛyɛ nwini no sɛe electrode ahorow a efi mu no, na ɛma nneɛma a wɔde kyerɛ nneɛma a ɛyera a ɛyɛ kɛse nkakrankakra wɔ adapɛn pii mu. Bere nyinaa kyerɛ tebea horow a enye koraa-asɛm, ɛnyɛ nea ɛyɛ nkyɛmu. Sɛ wɔde di dwuma wɔ mmeae a ɛyɛ den a, .LCD display ano aduru a wɔaka abom a ɛwɔ nneɛma a atwa yɛn ho ahyia ho nkyerɛkyerɛmu a ɛne no hyiano fata sɛ wɔsɔ hwɛ ansa na wɔde ahyɛ mu, ɛnyɛ bere a afuw mu huammɔdi bi akyi.
⚠️ Mfomso a wɔtaa di:sɔ ɔyɛkyerɛ bi hwɛ wɔ lab tebea mu na wofa no sɛ ɛbɛyɛ adwuma saa ara wɔ abɔnten, wɔ adekoradan a ɛyɛ nwini mu, anaa baabi a ɛbɛn nsuo fibea - a wonhwɛ sɛ module no IP adesua a wɔahyɛ no agyiraeɛ ne ɔhyeɛ dodoɔ no ne deployment tebea no hyia ankasa.
Power Supply Nsɛm ne Driver Mfomso
Voltage spikes ma driver IC sɛe ntɛm ara. Supply ripple - AC dede a ɛwɔ DC keteke kwan - so no de ɔsɛe a ɛyɛ anifere, a wɔaboaboa ano kɛse ba: random reset, mfonini dede, ne LED nkwa nna a ɛyɛ tiaa. Hwɛ wo module no datasheet no mu ma ne ripple voltage a ɛsen biara a wɔma ho kwan; amansan ahwehwɛde biara nni hɔ a ɛfa panel ahorow nyinaa ho.
Firmware bugs ne protocol mismatches yɛ category soronko a ɛsuasua hardware huammɔdi wɔ ɔkwan a ɛyɛ nokware so. Screen fitaa anaa scrambled output akyi board swap anaa software update taa yɛ nhyehyeɛ mfomsoɔ, ɛnyɛ panel a abubu. Saa nsonsonoe yi ho hia bere asɛ wɔde LCD ne LED bar screen format ahorow toto ho- mfiridwuma ahodoɔ wɔ protocol suban ne mfomsoɔ nsaano nkyerɛwee ahodoɔ.
Nsia-Anamɔn Nhwehwɛmu Adeyɛ
Fa eyinom yɛ adwuma nnidiso nnidiso. Gyina bere a woahu mfomso no ara pɛ - swaps a ɛho nhia sɛe bere na fa nsakrae foforo ba.
Anamɔn 1 - Aniwa so nhwehwɛmu ansa na anyinam ahoɔden-ayɛ adwuma.Hwehwɛ mpaapaemu, nsu a ɛyɛ nwini wɔ panel no akyi, ɔhyew agyiraehyɛde a ɛwɔ PCB no so, ne ribbon nhama a atu anaasɛ akɔneaba. Sɛ wuhu sɛ honam fam nneɛma asɛe a, mfa tumi nni dwuma. Nkitahodi a ɛyɛ tiaa betumi ama cascading asɛe a ne bo yɛ den koraa sen mfomso a edi kan no.
Anamɔn 2 - Hwɛ sɛnea input voltage no yɛ nokware.Fa multimeter di dwuma wɔ module no tumi a wɔde hyɛ mu pin ahorow no so. Voltages a wɔahyɛ da ayɛ ma TFT panels ne 3.3V, 5V, anaa 12V - hwɛ wo datasheet. Akenkan a ɛboro 5% a ɛwɔ spec akyi no fata sɛ wɔyɛ nhwehwɛmu. Sɛ mfomsoɔ a ɛba bere ne bere mu a, fa oscilloscope ka ho de hwɛ supply ripple a ɛne datasheet no nkyerɛkyerɛmu a wɔma ho kwan no hyia.
Anamɔn 3 - Tew akyi kanea no fi afoforo ho.Wɔ dan a emu yɛ kusuu mu no, hyerɛn kanea a wɔde tow nneɛma wɔ panel no ani wɔ ɔkwan bi so. Sɛ wubetumi ahu mfonini a ɛyɛ mmerɛw a, panel no yɛ adwuma na akyi kanea no nkutoo na adi huammɔ. Saa sɔhwɛ baako yi yi diagnostic dua no fã fi hɔ wɔ nea ennu sikani 10 mu - na ɛyɛ adwuma yiye pɛpɛɛpɛ wɔ sobar-format LCD kyerɛsɛnea ɛte wɔ standard rectangular panels so no.
Anamɔn 4 - Sesa nhama ne boards wɔ ɔkwan a ɛfata so.Fa sɔhwɛ nhyehyɛe pa a wonim-hyɛ mu. Fa afiri a ɛyɛ adwuma a wɔagye atom sesa ribbon cable no. Sɛ mfomso no di nhama no akyi a, nhama no ne ɔhaw no. Sɛ ɛtra board no ho a, board no na edi hɔ. Di kan sesa ade a ne bo nyɛ den na wotumi kɔ hɔ sen biara no.
Anamɔn 5 - Hwɛ nkitahodi nhyehyɛe no.Ɛkame ayɛ sɛ screen fitaa anaa garbled output akyi board swap yɛ nhyehyɛe mu mfomso bere nyinaa. Hwɛ sɛ baud rate (UART), SPI mode (CPOL/CPHA), anaa I2C address no toto datasheet no ho. Saa anammɔn yi kyere mfomso ahorow a ɛnsɛ wɔkiosk a wɔde kyerɛ nneɛma a atwa yɛn ho ahyiabaabi a wɔsesa module ahorow wɔ afuw mu, mpɛn pii no efi nkrataa a enni mũ mu.
Anamɔn 6 - Yɛ afuw tebea horow a ɛwɔ benkyi no so no bi.Ɛkame ayɛ sɛ bere nyinaa na display a ɛyɛ adwuma wɔ lab nanso entumi nyɛ adwuma wɔ deployment mu no wɔ thermal anaa vibration ntini. Nkitahodi a ɛyɛ marginal wɔ 22℃betumi abue koraa wɔ 55℃. Fa ɔhyew a wɔahyɛ so di dwuma bere a woreyɛ benkyi sɔhwɛ - mfomso a ɛda adi wɔ ɔhyew pɔtee bi so no kyerɛ ɔhyew ntrɛwmu sɛ adwinnade no tẽẽ.
Siesie Anaasɛ Sesa? Gyinaesi Nhyehyɛe bi
Ntease wom sɛ wobesiesie bere amfomso no wɔ localized to a single replaceable component - a cable, a backlight array, a firmware update - module no yɛ nhyehyɛe bi fã a sourcing a replacement no hwehwɛ sɛ wɔde downtime kɛse anaasɛ wɔsan yɛ no foforo, na ɛda adi pefee sɛ ɛka a wɔbɔ wɔ nsiesie ho no sua sen unit foforo.
Ntease wom kɛse sɛ wɔde besi ananmu bere asɛnkyerɛnne ahorow pii da adi bere koro mu. Akyi kanea a ɛyɛ mmerɛw, nkitahodi no asɛe, ne mfonini a ɛyɛ ahonhonsɛmdi a ɛbom pue no yɛ ade a wotumi de ho to so a ɛkyerɛ sɛ ɔsom nkwa nna aba awiei, ɛnyɛ mfomso biako pɛ a wobetumi asiesie. Nteaseɛ nso wɔ nsakraeɛ mu berɛ a mprempren module bi de nkyerɛkyerɛmu a ɛyɛ papa - hann a ɛkorɔn, adwumayɛ mu hyeɛ a ɛtrɛ, ingress ahobanbɔ pa - a ɛbɛtew daakye nsiesie adesoa so.
Ansa na wode wo ho bɛhyɛ ɔkwan abien no mu biara so no, fa nsɛmmisa anum yi yɛ adwuma:
- So eyi ne nea edi kan a unit no adi nkogu, anaasɛ adi nkogu pɛn?
- So mfomso no yɛ ade biako pɛ a wotumi sesa nkutoo?
- So nsiesie ho ka nyinaa - afã horow, adwumayɛfo, ne bere a wɔde gyae adwuma - no tra ase pefee wɔ ɛka a wɔbɔ wɔ nsakrae ho no ase?
- So ade a wɔasiesie no bɛtra hɔ ankasa denam nhyehyɛe no som ahwehwɛde a aka no so?
- So mprempren foforo a wɔde besi ananmu no de nsɛm a eye sen biara a ntease wom ma wɔ saa application yi ho?
Sɛ mmuae abiɛsa anaa nea ɛboro saa pɛ sɛ wɔde si ananmu a, mpɛn pii no ɛno ne ɔkwan a emu da hɔ. Browse nea edi mũ no nyinaanneɛma ahorow a wɔyɛanaasɛwo ne oduruyɛfo titiriw bi kasaɛfa fibea a wobenya ho. Sɛ wopɛ aguadidan ne nsɛnkyerɛnne ho nsɛm a, .LCD nhyehyɛe ahorow a wɔahyɛ da ayɛ ama aguadidan mu nsɛnkyerɛnnempɛn pii no ɛde sikasɛm a ɛkyɛ{0}}bere tenten a eye sen sɛnea ɛte sɛ-ma-te sɛ nsakrae tẽẽ ma.
Nsiesiei a Wɔde Siw Ano
- Nneɛma a atwa yɛn ho ahyia a wɔhwɛ so:Fa di dwuma wɔ module no hyew ne nwini a wɔahyɛ no mu, fa tebea horow a enye koraa-di dwuma de yɛ nhyehyɛe. Wɔ mmeae a ɛhɔ yɛ nwini kɛse-no, afiri a wɔatoto mu a IP ratings a wɔagye atom no yɛ ahwehwɛde, ɛnyɛ ahwɛyiye.
- Tumi a wɔde di dwuma:Fa nneɛma a wɔahyɛ ho mmara a hardware surge ahobammɔ wom di dwuma. Kwati sɛ wobɛtu mmirika akɔ akyi kanea so wɔ hann a ɛsen biara mu - adaptive brightness control tew LED wear so a enni nkɛntɛnso a wotumi hu wɔ dwumadie so.
- Nhwehwɛmu a wɔayɛ ho nhyehyɛe:Ɔsram biara - hwɛ connector seating na hwehwɛ condensation. Quarterly - tu diagnostic test pattern na hwɛ sɛ supply voltage wɔ adesoa ase. Afe biara - hwɛ supply ripple na hwɛ optical layers sɛ delamination anaa polarizer onyin anaa.

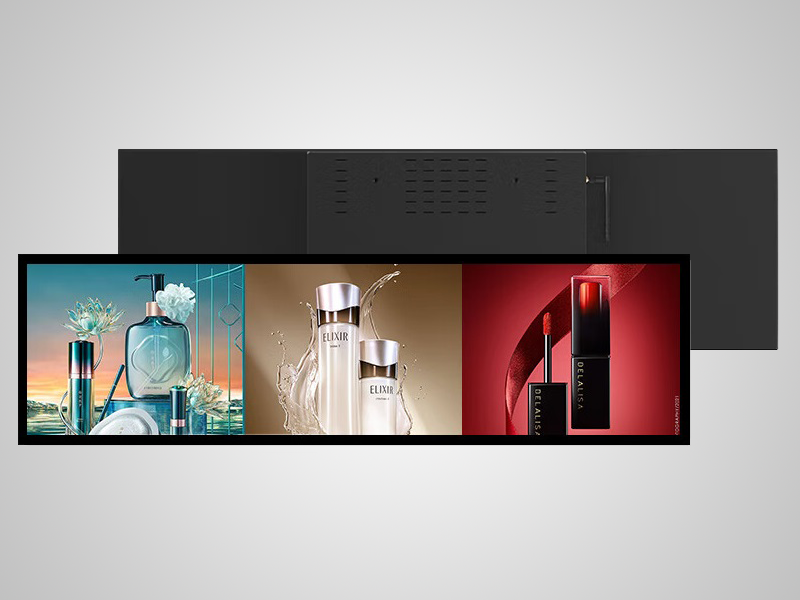

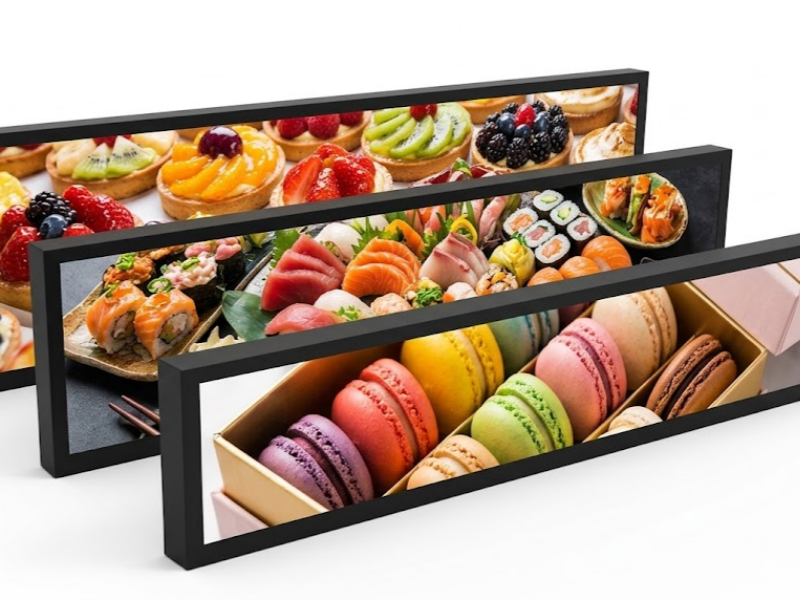

Maankasa-som terminaldeployments a ɛkɔ so wɔ high-traffic mpɔtam, bosome mmiɛnsa nhwehwɛmu no yɛ highest-botae biako nsiesie dwumadi.LCD screen a wɔatrɛw mu a wɔde di dwuma wɔ aguadidan akɛse muhyia nsu a ɛyɛ nwini ne nnuru a wɔde siesie nneɛma pɔtee a ebia nhyehyɛe a wɔde siesie nneɛma a wɔahyɛ da ayɛ no rentumi nni ho dwuma koraa.
Nsɛm a Wɔtaa Bisa
Me LCD kyerɛ screen fitaa - so panel no abubu?
Ɛnyɛ nea ɛho hia ankasa. Screen fitaa taa yɛ nkitahodi anaa mfiase huammɔdi sen honam fam ɔsɛe. Hwɛ protocol nhyehyeɛ - baud rate, SPI mode, anaa I2C address - no ho adanseɛ wɔ module no datasheet no ho. Eyi ho hia titiriw wɔ firmware update anaa board swap akyi a ebia nhyehyɛe no ntumi nkɔ baabi foforo yiye.
Mɛyɛ dɛn ahu sɛ akyi kanea anaa LCD panel no adi huammɔ?
Hyerɛn kanea a wɔde tow kanea wɔ screen no ani wɔ ɔkwan bi so wɔ dan a emu yɛ sum mu. Sɛ wutumi hu mfonini a ɛyɛ mmerɛw a, panel no reyɛ output yiye na akyi kanea no nkutoo na adi huammɔ. Mfonini biara nni kanea ase koraa kyerɛ sɛ mfomso no wɔ panel no, ofirikafo board no, anaa sɛnkyerɛnne kwan a ɛda wɔn ntam no mu.
So wobetumi asiesie display a ɛrehyerɛn a wɔmfa module no nsi ananmu?
Mpɛn pii no, yiw. Flickering taa fi ribbon cable a ayɛ mmerɛw, marginal solder joint, anaasɛ supply ripple a ɛboro so. Reseating connectors na verifying supply voltage stability under load siesie dodow no ara flickering anwiinwii ansa na component biara a ɛho hia sɛ wɔsesa.
So ɛyɛ nea asiane biara nni ho sɛ wode anyinam ahoɔden bɛhyɛ ade a wɔde kyerɛ ade a nsu a ɛwɔ mu no mu?
Dabi Ma module no nyow koraa wɔ baabi a ɛhɔ nwini sua ansa na wode ahoɔden ahyɛ mu. Sɛ wode anyinam ahoɔden hyɛ display a ɛyɛ nsu so a, ɛde asiane ba sɛ electrode no bɛsɛe na ayɛ tiaa a ebetumi asɛe panel no daa.
Dɛn nti na me display yɛ adwuma wɔ benkyi so nanso entumi nyɛ adwuma wɔ afuw mu?
Ɛkame ayɛ sɛ bere nyinaa na huammɔdi a ɛba bere ne bere mu afuw-nkutoo so no fi ɔhyew ntrɛwmu wɔ adwumayɛ mu hyew mu, wosow-a ɛde nkitahodi no mu ntamgyinafo ba, anaasɛ nsu a ɛyɛ nwini bere a wɔrefi ase no. San yɛ deployment tebea ankasa - ɔhyew, wosow, nsuo - wɔ benkyi sɔhwɛ mu. Sɛ wopɛ akwankyerɛ a ɛfa hardware a edi tebea horow a ɛyɛ den ho dwuma bere nyinaa a wobɛpaw ho a, .saa nsusuwii yi a ɛfa LCD ɔyɛkyerɛ a ɛyɛ adwuma yiye -hoka nsonsonoe a ɛwɔ specification mu a ɛho hia kɛse no so.
Awie
LCD module huammɔdi ahorow no yɛ nea wotumi kenkan bere a woahu nea ɛsɛ sɛ wohwehwɛ no. Panel a ɛyɛ sum, screen a ɛyɛ flickering, garbled output - biara map to manageable list of probable causes, na structured diagnostic process hwehwɛ mfomso ankasa no ntɛmntɛm sen sɛ wɔbɛsesa components no random. Adeyɛ koro no ara nso kyerɛ wo pefee bere a nsiesie no akɔ so na nea wɔde besi ananmu no yɛ mmuae a ɛfata.
Sɛ nnansa yi huammɔdi bi ama hardware foforo ahyɛ wo nhyehyɛe mu a, hwehwɛ musɛnea wɔde nnɛyi LCD screen ahorow a wɔtɔn no toto atetesɛm mu display ahorow ho, anaasɛfa nsɛmmisa krataa kɔmasɛ wɔbɛka wo akwammisa krataa no ahwehwɛde pɔtee ho asɛm.
