Electronic Shelf Labels (ESLs) resakra sɛnea adetɔnfo di nneɛma bo ho dwuma. Adeyɛ a wɔde si hɔ no na ɛkyerɛ sɛ ebia sotɔɔ bi benya akansi mu mfaso anaasɛ ebenya adesoa a ne bo yɛ den a wɔde besiesie no.
System Architecture Nneɛma a Ɛho Hia
ESL nhyehyɛe bi wɔ nneɛma anan a egyina wɔn ho wɔn ho so. Wɔn abusuabɔ ho ntease siw mfomso a ɛho ka yɛ den a akuw ahorow di mpɛn pii no ano.

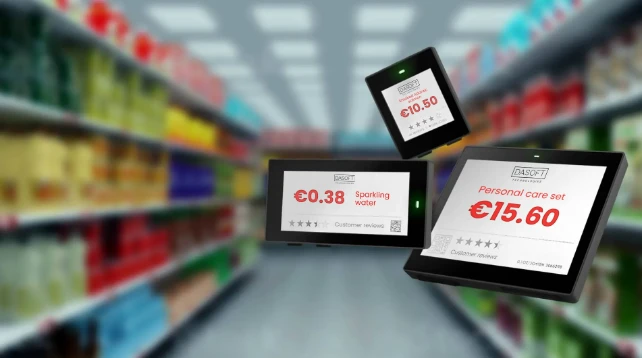

Ɛlektrɔnik Nneɛma a Wɔde Di Dwumafa electrophoretic display mfiridwuma di dwuma. Microcapsules a nneɛma nketenkete a ɛyɛ tuntum ne fitaa a ahoɔden wom wom no tu kɔ baabi foforo wɔ ahoɔden a wɔde di dwuma ase, na ɛma mfonini ahorow a ɛyɛ den a ɛkɔ so tra hɔ a ahoɔden nni mu. Saa abɔdeɛ mu nneɛma yi ma battery nkwa nna yɛ mfeɛ 3-5 wɔ adwumayɛ tebea a ɛyɛ daa mu-Hanshow Nebular series no bɔ mfeɛ 5 agyiraeɛhyɛdeɛ no bere nyinaa, berɛ a ɛkame ayɛ sɛ Chinafoɔ a wɔyɛ sikasɛm nhyehyɛeɛ binom ntumi nkɔ mfeɛ 2.5. Display akɛse fi 1.54 inches ma standard shelf anoano kosi 12.2 inches ma end-cap promotions.

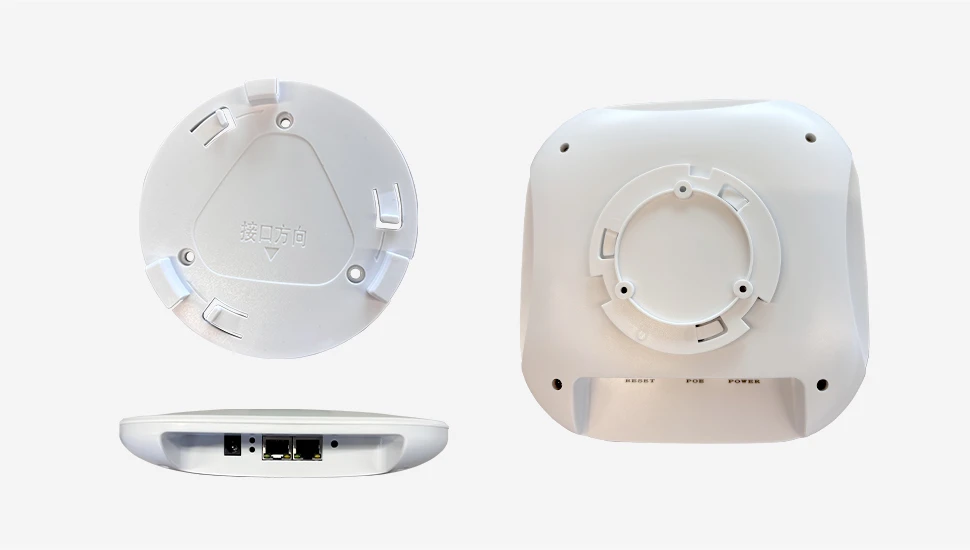

Base Stations (Nneɛma a Wɔde Kɔ) .bridge ne network infrastructure ne wireless label nkitahodi. SES-imagotag VUSION nhyehyɛe no yɛ adwuma wɔ 2.4GHz, bere a Pricer de infrared/RF afrafra a ɛyɛ ne de di dwuma wɔ mfonini ahorow bi mu. Base station biara di label ɔhaha kosi mpempem pii so wɔ ne coverage radius-SES-imagotag kyerɛ sɛ 15,000 wɔ access point biara mu, nanso dodow ankasa yɛ 2,000-3,000 wɔ dense retail tebea mu ansa na drop rates a wontumi nnye ntom afi ase ada adi.

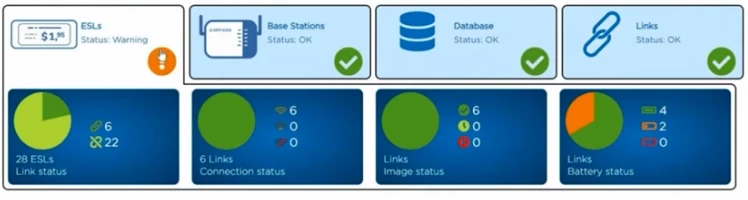

Adwumayɛfo a Wɔhwɛ So nodi ESL softwea stack no ho dwuma. Ɛhwɛ product database no so, ɛkyerɛ display templates, queues update commands, na ɛkyerɛw system events. Cloud deployments anya nkɔso kɛse wɔ mfe abiɛsa a atwam no mu. Wɔ adetɔnfo dodow no ara a wonni nkyerɛwde 10,000 fam no, mprempren cloud ne nyansahyɛ a wɔde di dwuma dedaw.
Software a Wɔde Di Dwumade control interface ma label registration, template design, content nhyehyeɛ, ne system monitoring. API su no gu ahorow kɛse wɔ adetɔnfo ntam. Pricer API nkrataa no ye yiye. SES-imagotag's anya nkɔso nanso ɛda so ara wɔ nsonsonoe. Adetɔnfo nketewa no bi wɔ API ahorow a ɛte sɛ nea wɔayɛ wɔ akyi.
Site Survey: Fapem a Wɔde Sisi Nneɛma a Edi Mu
Sɛdeɛ afe 2022 nhwehwɛmu bi a Retail Industry Leaders Association yɛeɛ kyerɛ no, beaeɛ nhwehwɛmu a ɛnsɛ no boa ma bɛyɛ 60% wɔ ESL dwumadie a ɛdi nkoguo a ɛhia sɛ wɔsan yɛ adwuma kɛseɛ.
Nhwehwɛmu a emu yɛ den hwehwɛ sɛ wɔyɛ saannɔnhwerew abiɛsa anyɛ yiye koraa noma sotɔɔ a ne kɛse yɛ mita 2,000-ahinanan.

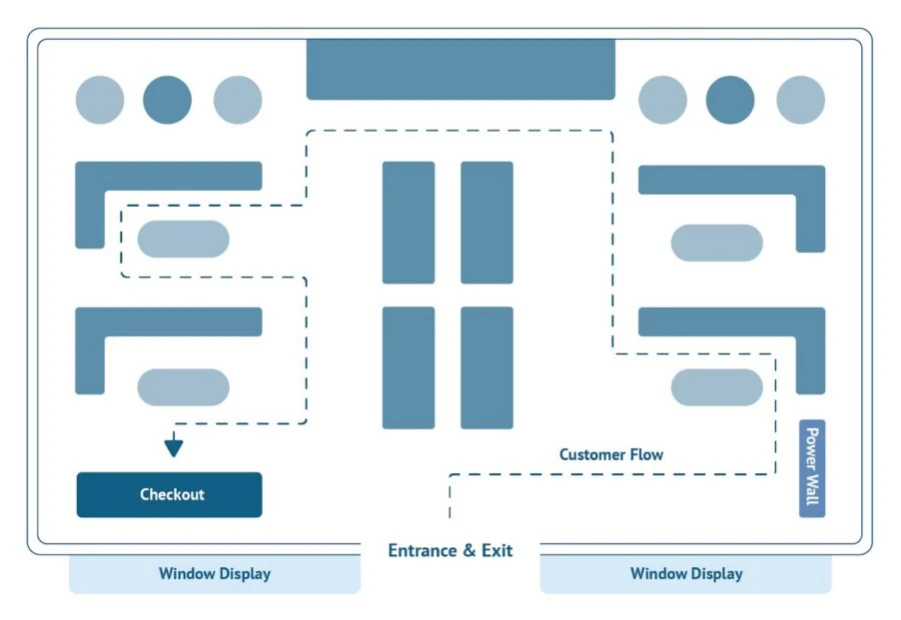

Nneɛma a Atwa Yɛn Ho Ahyia Ho Nhwehwɛmu
Floor Plan Nwoma a Wɔde Yɛ Adwuma
Nya anaa yɛ fam nhyehyɛe a ɛkɔ akyiri a ɛkyerɛ mmeae a wɔde nneɛma gu, baabi a wɔde nneɛma bɛkɔ, ne sorokɔ, ne adansi nneɛma. Nsɛm a wɔhwehwɛ no bi ne mmeae a frigye afiri no wɔ ne ne ahorow, adansi adum ne afasu, ɔdan atifi sorokɔ a ɛsakra, ne anyinam ahoɔden ne nkitahodi nhyehyɛe a ɛwɔ hɔ dedaw.
Ɛsɛ sɛ wɔhwɛ fam nhyehyɛe a sotɔɔ no de ma no sɛ ɛyɛ nokware. Na Kroger adwumayɛbea biako a wɔde sii hɔ wɔ Ohio no wɔ fam nhyehyɛe a wɔde ama a adi mfe anan na ɛnkyerɛ sɛ wɔasiesie ɔfã a wɔde yɛ frigye no koraa. Na ɛsɛ sɛ wɔsan yɛ nhyehyɛe foforo wɔ base station gyinabea ahorow no mu wɔ da a ɛto so abien a wɔde besisi hɔ no. Sɛ wodi ho adanse yiye a, wobetumi akwati saa tebea no.
Shelf Nkyekyɛmu
Ɛsono sɛnea shelving biara yɛ n’ade wɔ RF nsɛnkyerɛnne ho, na nea ɛwɔ sotɔɔ no mu ntease ho hia ansa na woakra mounting hardware.
Dade gondola ahorow a wɔtaa de di dwuma-abodoo ne bɔta a ɛwɔ sotɔɔ dodow no ara a wɔtɔn nneɛma wom mu-ma sɛnkyerɛnne no brɛ ase a ɛkɔ fam. Rail clips yɛ adwuma yiye wɔ ha; Pricer K-series clips ne SES-imagotag SmartTAG clips no ada nkonimdie adi daa.Wire kɛntɛn shelvingno yɛ mmerɛw ankasa sɛ wɔde bɛyɛ adwuma efisɛ nhyehyɛe a wɔabue mu no ma RF ntwitwiridii kakraa bi ba. Hook adapters yɛ adwuma yie, ɛwom sɛ vibration nsɛm betumi aba wɔ high-traffic produce mmeae a adetɔfoɔ gye nneɛma bere nyinaa.
Glass a wɔde kyerɛ nneɛmayɛ tẽẽ-attenuation a ɛba fam, na adhesive anaa magnetic mounting yɛ adwuma. 3M VHB tape yɛ nea wɔpɛ ma daa installations efisɛ ɛnsakra bere kɔ so.Nnaka a wɔde gu frigye mu a wɔato apon mu-eyi ne nhyehyeɛ a ɛde adwuma no di nkoguo. Attenuation a emu yɛ den nam ahwehwɛ ne dade a wɔde ayɛ no so ba. Abɔnten magnetic mount nkutoo. Ɛnsɛ sɛ wɔbɔ mmɔden sɛ wɔde nneɛma bɛto mu a adetɔnfo awerɛhyem mfa ho. Drop rates yɛ nea wontumi nnye ntom bere nyinaa wɔ emu placement mu.
Freezer a wɔde yɛ nneɛmano nye koraa mpo. Wɔnkamfo nkyerɛ sɛ wɔmfa nneɛma a ɛwɔ mu no nhyɛ mu. Berɛ. Nsɔhwɛ a wɔde range extenders, specialty antennas, ne repositioning ahwɛ no nnyaa nea wotumi de ho to so. Fa si abɔnten anaasɛ nhyɛ so koraa.
RF Nneɛma a Atwa Yɛn Ho Ahyia Nhwehwɛmu
Kyerɛw 2.4GHz emitters nyinaa. WiFi kwan a wɔfa so kɔ hɔ no yɛ nea ɛda adi pefee-kyerɛw akwan dwumadi ahorow. Nanso mma wo werɛ mmfi Bluetooth beacons (a ɛreyɛ ayɛ nea abu so kɛse wɔ adetɔfo nhwehwɛmu mu), wireless security cameras, microwave ovens a ɛwɔ break rooms, ne IoT sensors.
LED kanea nhyehyɛe binom-titiriw nea ɛyɛ nyansa/a ɛka bom-ma dede a ɛyɛ 2.4GHz a ɛdɔɔso ma ɛde refresh huammɔdi ahorow a ɛba bere ne bere mu ba. Ná Target sotɔɔ biako a wɔde besisi hɔ no hwehwɛ sɛ wodi ɔhaw ahorow ho dwuma nna abien ansa na wɔahu abusuabɔ a ɛda wɔn kanea sohwɛ nhyehyɛe foforo no ntam. Hwɛ biribiara mu.
Adesua nhoma kwan no fa ɔkwan a ɛyera ho akontaabu a ɛwɔ nsusuwii te sɛ PL(d)=PL(d3) + 10n log11(d/d1) + Xσ ho. Wɔ nneyɛe mu no, wosua mmara a ɛyɛ den na afei wɔde sɔhwɛ di ho adanse. Dade gondola twaa kwan a ɛkɔ ebia mita 12-15 wɔ base station biara mu. Sɛ worebɛn frigye a, twa saa no mu abien. Wɔ kɔnkrit adum akyi no, line-of-sight anaasɛ base station a wɔatu ho ama ho hia. Nantew sɔhwɛ-a wɔakata so akyiri yi-ne nea ɛkyerɛ ankasa sɛ ebia kata so yɛ adwuma anaa.
Label Dodow Ho Nhyehyɛe
Kan SKUs wɔ linear mita biara a ɛwɔ shelf space mu ma department biara. Grocery taa tu mmirika 8{3}}12 SKUs wɔ mita biara mu. Akwahosan ne ahoɔfɛ wɔ baabiara-standard drugstore shelving betumi ayɛ 15-20, nanso Sephora-style display betumi abɔ 40+. Electronics runs sparse at 3-6 per meter. Ntade a ɛte saa ara wɔ 4-8.
Fa shelf tenten nyinaa bɔ dwumadibea biara mu. Fa ka ho5% a ɛyɛ nea ɛba ntɛmma nneɛma foforo a wɔde bɛba-anaasɛ10%sɛ adetɔnfo no taa yɛ planogram nsakrae a.
Wɔ size distribution ho no, deployments dodow no ara ba awiei wɔ hɔ60-70% nkyerɛwde nketewa (1.54") ., 15-20% mfinimfini (2.13") ., na nea aka no mu paapaee wɔ 2.9 "ne akɛse ntam. Adetɔnfo bere nyinaa underorder 2.9" kɛse no mfiase no, afei san ba bio bɛhwehwɛ pii. Nneɛma a wɔde hyɛ nkurɔfo nkuran ma wonya margin, na sotɔɔ so ahwɛfo pɛ sɛ wɔde nkyerɛwde akɛse kyerɛw saa mmeae no. Yɛ sikasɛm nhyehyɛe sɛnea ɛfata.
Network Nneɛma a Wɔde Yɛ Adwuma
Base Station Dodow a Ɛwɔ Hɔ
Theoretical coverage wɔ free space yɛ mita 25-30. Mfaso biara nni saa nɔma no so wɔ sotɔɔ ankasa mu. Na dade shelving no ankasa range ne10-15 na ɛyɛ mita. Mmeae a wɔde frigye gu mu no kɔ fam kodu5-8 mita na ɛwɔ hɔ.
Akontaabu ankasa no nyɛ nea ɛyɛ den. Kyɛ fam no mu yɛ no mmeae ahorow sɛnea akwanside ahorow te, fa ɔkwan a wɔfa so kata so ankasa no di dwuma ma mpɔtam biara, bɔ base stations a ehia no mua, afei fa ka ho20% a wɔde yɛ adwuma. Saa redundancy no ne nea ɛma refresh success rate kɔ so boro 99% na esiw anadwo fã ntɛmpɛ frɛ ano bere a base station bi awu no.
Adetɔnbea bi a wɔtɔn nnuan a ne kɛse yɛ mita 2,000 ahinanan no sɛee saa: beae a wɔtɔn nneɛma a wɔtaa de di dwuma no gyee bɛyɛ mita 1,400 ahinanan na na ehia gyinabea ahorow 4. Na frigye ɔfã a ne kɛse yɛ mita 400 ahinanan no hia sɛ wɔde base stations 3 si hɔ esiane sɛ na ɛso atew nti. Ná beae ketewaa bi a wɔyɛ ahosiesie a ɛwɔ soro-density hia n’ankasa base station. Total duu 8, na bere a wɔayi wɔn afi adwumam no, na ahyɛde no yɛ 10.
Adetɔnfoɔ-SES-imagotag wɔ saa asɛm yi mu-faa 6. Wɔannyɛ mfomsoɔ wɔ katasoɔ kronkron gyinabea. Nanso 6 base stations anka ɛde ebia 97% refresh rates bɛma. 10-unit deployment no bɔ 99.5% bere nyinaa+. Saa 2.5% nsonsonoe no kyerɛ ase sɛ 75 labels a ɛnyɛ foforo mma dapɛn awiei tɔn wɔ 3,000-label sotɔɔ mu. Hardware ho ka a ɛboro so no fata.
Nneɛma a wɔde si hɔ
Mount ntam3.0-4.0 mitaa ɛboro fam. Lower than that na shelf akwanside kum coverage. Ahoɔden a ɛkorɔn ne sɛnkyerɛnne ahoɔden a ɛkɔ ase-shelf labels no yera-a ɛtaa yɛ high-velocity SKUs a ɛhia updates a wotumi de ho to so.
Sɛ wohwɛ soro a, fa si baabi a akwan no twam wɔ baabi a nhama a emu da hɔ a wotumi hu ade wɔ akwan horow pii so. Mfa nhyɛ frigye afiri atifi tẽẽ da. Compressor interference no nkutoo bɛma ɔhaw ahorow aba.

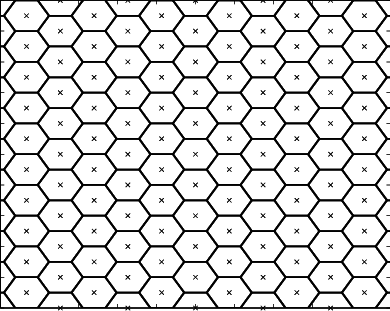

Deploy wɔ ahexagonal grid nhwɛsodemmom sen sɛ ɛbɛyɛ ahinanan. Hexagonal cells ma bɛyɛ 13% beaeɛ a ɛyɛ papa a ɛwɔ base station count korɔ no ara. Wɔasusuw eyi wɔ deployments pii mu.

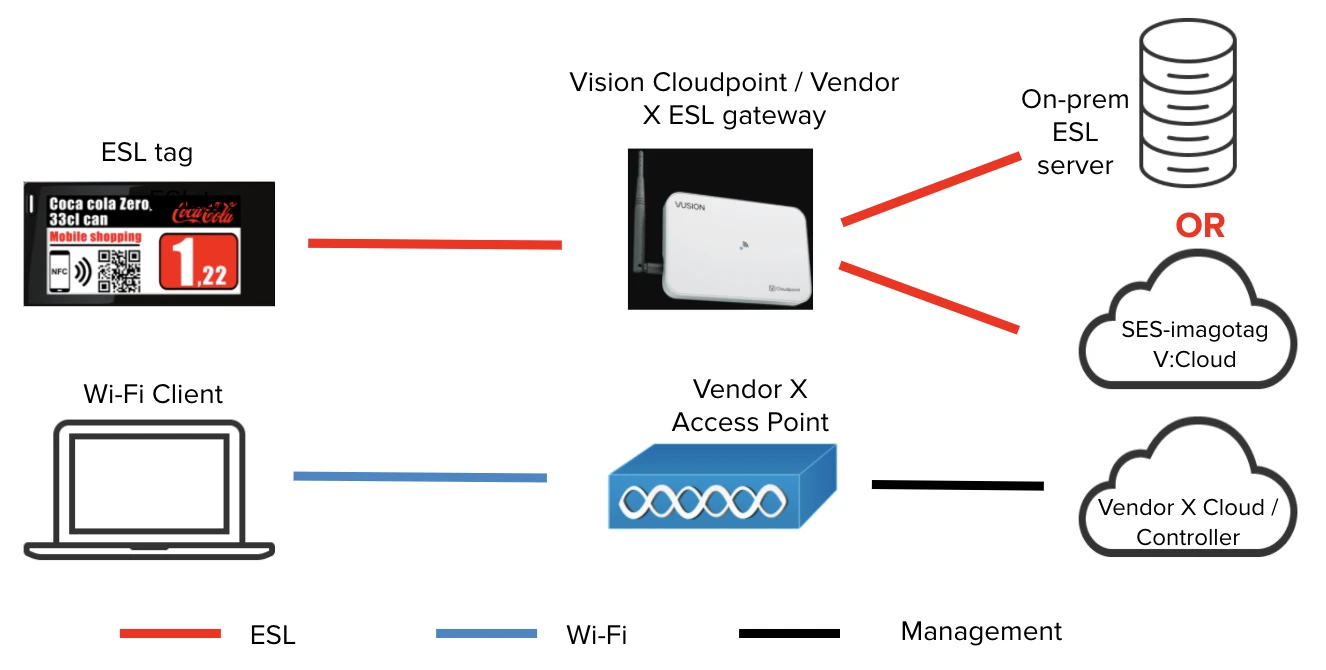

Switches ne Cabling a wɔde hyɛ mu
PoE + nsakrae ahorowwɔhwehwɛ-802.3at a anyɛ yiye koraa no 25.5W wɔ hyɛn gyinabea biara mu. Fa gigabit di dwuma, ɛnyɛ Fast Ethernet. Mfonini data a ɛfa label akɛse ho no bɛbɔ bottleneck wɔ 100Mbps links so. Nya switch a wɔhwɛ so ma VLAN nkyekyɛmu ne QoS. Ɛsɛ sɛ port count yɛ base station count a wɔde 30% headroom ka ho ma daakye ntrɛwmu.
Sɛ wɔde cableing di dwuma a, .Cat6 anaa 6A a wɔabɔ ho ban, mita 90 mmirikatu a ɛsen biara wɔ TIA-568 biara mu, sie 30cm mpaapaemu fi tumi nhama ho wɔ mmirikatu a ɛne ne ho di nsɛ so. Fa conduit anaa cable tray di dwuma, titiriw wɔ sotɔɔ ahorow a wotumi hu ɔdan atifi nneɛma. Eyi mu biara nyɛ ESL-specific-ɛyɛ standard network instɔlehyɛn adeyɛ pa.
Base Station a Wɔde Sisi Hɔ

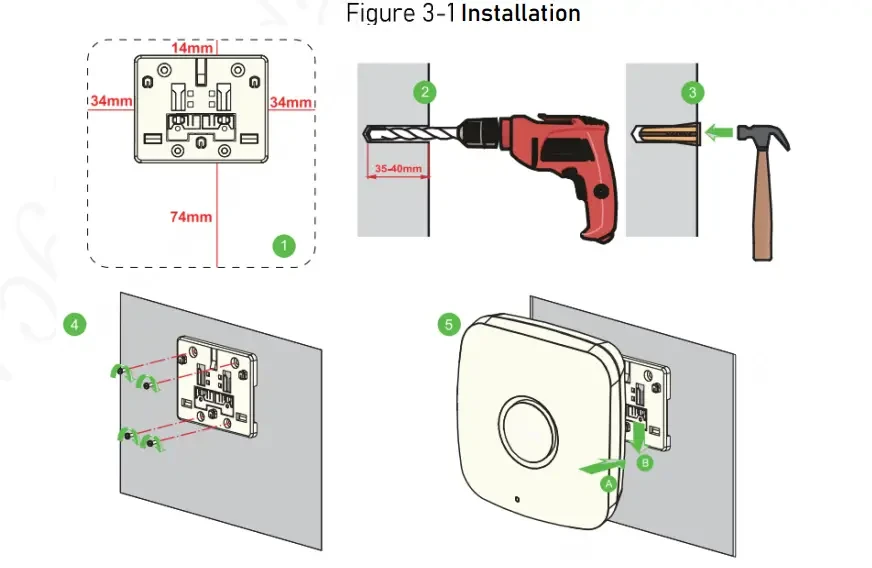

Nnwinnade ne Nneɛma a Wɔhwehwɛ
Tumi drill a hama adwuma, 8mm masonry bits (fa spares efisɛ ceiling kɔnkrit di eyinom), cable crimping adwinnade, cable tester, laser kwan mita, honhom level, torque screwdriver. Wɔ nneɛma ho: vendor-de mounting brackets (nhyɛ ananmu), expansion anchors, Cat6 patch cables a ne tenten gu ahorow, UV-resistant cable ties, ne cable labels.
Cable labels no nyɛ nea wopɛ.
Ɔkwan a Wɔfa so De Hyehyɛ Mu
Fa base station coordinates fi nhyehyɛe so kɔ honam fam mmeae denam laser kwansin mita no so. Hyɛ ntokuru a wɔde si so agyirae. Twa mfonini wɔ saa gyinabea yi-bere a akraman no bisa nea enti a base station bi wɔ beae pɔtee bi asram asia akyi no, nkrataa sie akyinnyegye.
Drill ntokuru, fa anchors, secure brackets, verify level, torque to spec (mpɛn pii no 2-3 Nm ma M6 kɔ anchors mu). Fa network cable fi PoE switch kɔ gyinabea biara, gyaw 1-mita service loops wɔ awiei biara. Fa nhama no bɔ ho ban wɔ mita 1 ntam na kyerɛw n’awiei abien no nyinaa.
Sɔ cable run biara hwɛ ansa na wode base station no ahyɛ mu.Fa RJ45 twa T568B gyinapɛn akyi, afei sɔ hwɛ sɛ ɛkɔ so ne pin dwumadie. Kyerɛw nea efi mu ba.
Sɛ cables no yɛ nokware wie a, fa kɔ base station, mount to bracket, hwɛ sɛ power LED hyerɛn a ɛkyerɛ sɛ PoE nkitahodi a edi mu. Kyerɛw MAC address ne beae a ɛwɔ ankasa. Ɛsɛ sɛ unit no pue wɔ management software mu wɔ sikɔne 60 mu. Sɛ ɛnte saa a, hwɛ cable termination no kan-90% bere a ɛno ne ɔhaw no, ɛnyɛ unit a asɛe.
Label a Wɔde Sisi Hɔ
Pre-Installation Ahosiesie
Labels hyɛn wɔ nna a emu dɔ tebea mu. Activation gu ahorow wɔ nea ɔyɛe no mu na ɛkame ayɛ sɛ eyi ama bere a wɔsɛe no pii aba sen asɛm foforo biara.SES-mfonini a wɔde ahyɛ mude bɔtn bi di dwuma de mia-kura bɔtn a ɛwɔ mu no sikani 3-5 kosi sɛ LED no bɛhyerɛn.Pricerlabels auto-wake bere a wohu base station sɛnkyerɛnne a ɛfata.Hanshow na ɔkyerɛweedodow no ara de battery tab a woyi fi hɔ di dwuma.Solum na ɔkyerɛweehwehwɛ sɛ magnetic activation twam wɔ sensor beae bi a wɔakyerɛ so.
Ɛsɛ sɛ wohu ɔkwan a wɔfa so yɛ adwuma no ansa na instɔlehyɛn da no adu. Akuw ahorow asɛe nnɔnhwerew pii efisɛ obiara anhaw ne ho sɛ obedi kan akenkan activation procedure no.
Batch a wɔde kyerɛw wɔn dinno fata bere a wɔde hyehyɛ no. Fa serial nɔma fi po so hyɛn nkrataa mu kɔ amannɔne, fa kɔ management software mu, di kan-de ma beae koodu. Wei twa per-label instɔlehyɛn bere so bɛyɛ 40%. SES-imagotag no dodow a wɔde ba amannɔne no yɛ adwuma yiye. Hanshow's hwehwɛ CSV formatting pɔtee a wɔankyerɛw no yiye-frɛ wɔn mmoa ma templates sɛ standard import no tow mfomso a.
Akwan a Wɔfa so kyekyere nneɛma
Sɛ wopɛ sɛ wɔde di dwuma a wɔayɛ ho nhyehyɛe a wɔde gyinabea ahorow a wɔadi kan ama -wɔ hɔ a, .a wɔde kyekyere nneɛma nnidiso nnidisoyɛ adwuma yiye. Technician kɔ beae a wɔakyerɛ, scan label barcode, system si pre-assigned binding no so dua, technician mounts, system queues update. Installers a wɔn ho akokwaw bɔ labels 80-100 dɔnhwerew biara wɔ saa kwan yi so.
Ankasa-bere a wɔde kyekyerentease wom bere a wɔanwie planogram ahorow no. Scan afiri barcode wɔ shelf, scan label barcode, nhyehyɛe no bɔ binding wɔ nwansena so. Fa brɛoo yɛ 50-70 labels dɔnhwerew biara, nanso ɛtɔ mmere bi a ɛho hia.
Nneɛma a wɔkyekyere no piivia CSV upload yɛ ntɛmntɛm sen biara bere a data a ɛho tew wɔ hɔ. Validate yiye ansa na wode akɔ.
Honam fam Nneɛma a Wɔde Sisi So
Adetɔnbea dodow no ara de C-channel anaa T-channel rails di dwuma wɔ shelf anoano. Profiles a wɔtaa de di dwuma neDBR 39 na ɛwɔ hɔ(39mm sorokɔ, a ɛtaa ba Europa aguadidan akɛse te sɛ Carrefour),HL 30 na ɛwɔ hɔ(30mm, abu so wɔ Amerika Atifi fam nnuantɔnbea), ne Data Strip trɛw ahorow wɔ adekoradan mu aguadidan mu. Fa clip no toto profile no ho, fa tabs hyɛ keteke kwan a wobue mu, fa nhyɛso a ɛkɔ fam bere a worehwe ase akɔ w’anim no, gyae. Spring tension to no mu wɔ nea ɛwɔ hɔ. Hwɛ sɛ label no sɔre tia horizontal sliding-adetɔfo bɛbɔ eyinom bere nyinaa.
Wɔ dade a enni keteke kwan so, anaasɛ abɔnten a wɔde si frigye nkotoku so ho no, .magnetic mounts a wɔde yɛ nneɛmaadwuma fa ahwehwɛ so kosi bɛyɛ 6mm kɛse. Eyi ne ɔkwan a wɔfa so di frigye nkotoku a wɔato mu ho dwuma. Fa isopropyl alcohol di kan tew nea ɛwɔ soro no ho.
Adhesive a wɔde hyɛ muwɔ ahwehwɛ, plastic, anaa dua so no yɛ nea ɛtra hɔ daa titiriw. 3M VHB tape ma mfiridwuma-ahoɔden nkitahodi. Sɛ wobeyi afi hɔ a, ɛhwehwɛ sɛ wɔde ɔhyew tuo ne ade a wɔde nkata so, na ɛda adi sɛ asase ani asɛe. Hwɛ hu sɛ nea ɔrehwehwɛ mmoa no te eyi ase ansa na wode aduru a wɔde nkata so adi dwuma.
Installation Ntoatoaso
Wie labels nyinaa wɔ base station biako coverage zone ansa na woakɔ nea edi hɔ no so. Wei ma kwan ma wɔdi adanseɛ ntɛm ara na ɛsiw instɔlerfoɔ kwan sɛ wɔbɛbɔ RF sunsuma a ɛsiw updates a ɛkɔ labels a wɔde ahyɛ -dada no kwan.
Nhyehyɛe a wɔde di kan:end caps ne promotional displays kan (a wotumi hu a ɛkorɔn sen biara, sotɔɔ sohwɛfo hwɛ eyinom), perimeter departments nea ɛto so abien (cable runs a ɛware sen biara, kyere infrastructure haw ahorow ntɛm), center store gondolas abiɛsa (density a ɛkorɔn sen biara, nea wɔtaa yɛ no mpɛn pii), mmeae titiriw no di kan (kora frigye adwuma a ɛyɛ anifere no so ma bere a kuw no wɔ rhythm).
Wɔ deployments bɛboro 3,000 labels, kuw nhyehyɛe ho hia. Ɔhwɛfo biako a ɔhwɛ adwumayɛ so na odi sotɔɔ sohwɛ nkitahodi ho dwuma. Nnipa baanu a wɔde mobile devices scan/binding. Installers baanan reyɛ honam fam mounting. Verifier baako a ɛsi so dua sɛ ɔyɛkyerɛ no yɛ pɛpɛɛpɛ na ɔkyerɛw nsɛm. Saa nhyehyɛe yi kɔ so tra hɔ400-500 labels dɔnhwerew biara. Akuw a wɔn ho akokwaw betumi abɔ 600+, nanso wɔnyɛ sikasɛm nhyehyɛe a wofa no sɛ saa ahoɔhare no.
System Nsiesiei a Wɔde Yɛ Adwuma
Update Ntamgyinafo
Eyi ne battery nkwa ne mmuae aguadi-off.
Sɛ wode biribiara si hɔ ma ɛyɛ foforo simma kakraa biara a, ɛte sɛ nea eye kosi sɛ wɔbɛsesa labels wɔ asram 18 akyi sen sɛ wɔbɛsesa mfe 4. Label a wɔyɛ no foforo simma 5 biara no sa bɛyɛ sɛ8 ntɛmntɛm sen saasen biako wɔ nnɔnhwerew 2 kyinhyia mu. Nnwumakuw bi a wɔtɔn nnuan de wɔn dwumadibea a wɔyɛ nneɛma foforo no nyinaa sii hɔ sɛ wɔmfa simma 5 nyɛ nneɛma foforo efisɛ na nneɛma bo taa sesa, afei na ɛsɛ sɛ wɔsesa nkyerɛwde 400 a wɔakyerɛw so wɔ mfe abien akyi.
Ɔkwan a ntease wom: fa di dwumaNnɔnhwerew 1-2 ntamgyinafosɛ default ma nneɛma dodow no ara. Tu kɔ15-30 simma updatesma akuw a ɛtaa sesa wɔ bo mu te sɛ nneɛma a wɔyɛ anaa nneɛma a wɔtɔn a wɔde si akan. Fa wɔn a wɔyɛ basabasa no sie1-5 simma nhyehyɛema SKU pɔtee bi wɔ bere a wɔreyɛ nkɔso pɔtee bi, ɛnyɛ sɛ blanket nhyehyɛe.
Channel a Wɔpaw
2.4GHz band no wɔ channels 14, nanso ɛno nkutoo1, 6, ne 11 na ɛwɔ hɔnyɛ-a ɛka bom wɔ FCC mantam mu. Hwehwɛ WiFi deployment a ɛwɔ hɔ dedaw no mu na paw ESL channels na ama overlap no ayɛ ketewaa bi. Sɛ WiFi wɔ akwan 1 ne 6 so a, fa ESL to 11. Wobetumi asiesie adwumayɛbea WiFi nhyehyɛe dodow no ara-ne akraman no IT kuw no ayɛ biako sen sɛ wɔbɛyɛ adwuma atwa wɔn ho ahyia kɛkɛ.
Fi ase nkra tumi wɔ medium (10-15 dBm). Sɛ coverage gaps kɔ so wɔ positioning optimization akyi nkutoo a, kɔ soro. Sɛ wokɔ soro a, ɛma ɔhaw a ɛwɔ 2.4GHz nhyehyɛe afoforo a sotɔɔ no ankasa WiFi ka ho no yɛ kɛse.

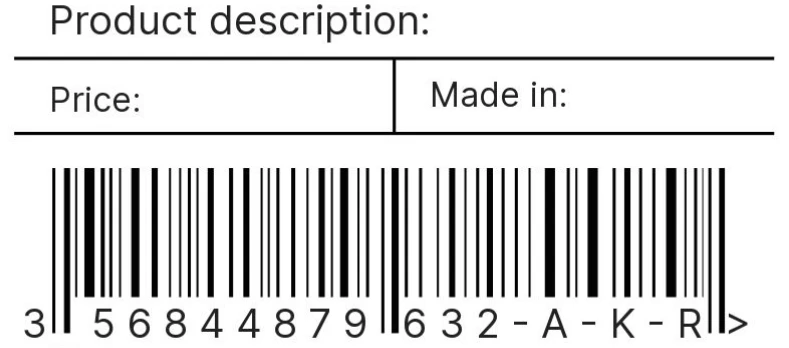

Nhwɛsode a Wɔayɛ
Ɛsɛ sɛ bo yɛ ade kɛse-.anyɛ yiye koraa no, nkyerɛwde a ɛwɔ nsɛntitiriw 48sɛnea ɛbɛyɛ a wobetumi akenkan wɔ mita 1 kwan so. Product din a ɛto so abien. Barcode kɛse a wɔde yɛ scanning a wotumi de ho to so, .anyɛ yiye koraa no, 80% a wɔma ɛyɛ kɛsema EAN-13. Mmara kwan so hwehwɛ sɛ wɔbɔ unit bo wɔ EU ne U.S. aman pii mu, enti hwɛ sɛ mpɔtam hɔ ahwehwɛde ahorow no yɛ nokware. Frɛmfrɛm a wɔde hyɛ nkurɔfo nkuran hia kɔla ahorow a ɛne ne ho bɔ abira wɔ kɔla abiɛsa a wɔde kyerɛ so; hyɛ no nsow sɛ kɔkɔɔ kyerɛ sɛ ɛyɛ fitaa wɔ nkyerɛwde a ɛwɔ kɔla biako so, enti yɛ no sɛnea ɛfata.
Nkabom a wɔde bɛka abom
Akwan abien a wobɛfa so ne adwumayɛ nhyehyɛe ahorow no adi nkitaho.Push nhwɛsodewɔ ERP anaa POS no de boɔ foforɔ nam API so mena berɛ a nsakraeɛ aba-bere ankasa-bere a ɛne ne ho hyia nanso ɛhia sɛ wɔsesa fibea nhyehyɛeɛ no.Twe nhwɛsodewɔ ESL server asɛmmisa no wɔ nhyehyɛe-a ɛyɛ mmerɛw sɛ wode bedi dwuma nanso ɛde lag ba bo nsakrae ne label update ntam.
Wɔ nnuan ne ɛlɛtrɔnik mfiri a nneɛma bo taa sesa fam no, push fata mmɔdenbɔ a wɔde bɛka abom no. Sɛ wopɛ boɔ a ɛyɛ den te sɛ hardware stores a, pull yɛ adwuma yie.
Database nkitahodi tẽẽnso yɛ option-bisa adeɛ pon no ma kyerɛwtohɔ a wɔasesa firi sync a ɛtwa toɔ. Bere nyinaa fa bata replica bi ho, na ɛnyɛ production. ESL asɛmmisa bi a wɔankyerɛw no yiye de POS nhyehyɛe bi baa fam wɔ Black Friday bere mu wɔ instɔlehyɛn biako mu.
API frɛ ankasa ne database abisadeɛ no yɛ REST nsɛm a ɛyɛ tẽẽ ne SQL a wɔpaw. Asɛnnennen no ne data a ɛyɛ papa ne mfomso a wodi ho dwuma, ɛnyɛ mfiridwuma mu nkabom no ankasa.
Sɔhwɛ ne Nneɛma a Wɔde Di Dwuma

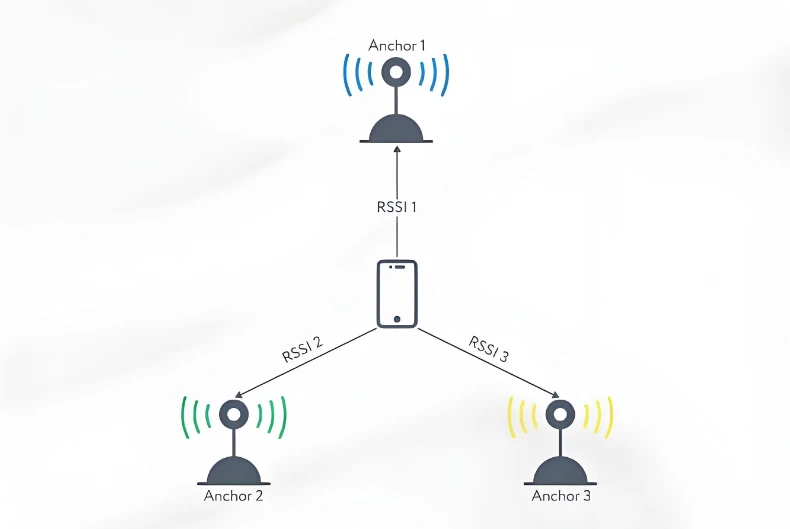

Nantew Sɔhwɛ
Fa sɔhwɛ nkyerɛwde gu sotɔɔ no nyinaa mu, a gyinabea ahorow a ɛwɔ ahye a wɔde kata so-akwan no awiei, ntwea so, adum akyi, mmeae a ɛbɛn ne nea ɛwɔ frigye mu ka ho. Trigger bere koro mu update to sɔhwɛ labels nyinaa. Label biara a entumi nyɛ update wɔ simma 5 mu no kyerɛ sɛ coverage gap wɔ hɔ. Siesie eyinom ansa na woatoa so.
Sɛ wopɛ nhwehwɛmu a ɛkɔ akyiri a, fa RF nhwehwɛmu nnwinnade anaa ESL nhyehyɛe no a wɔasisi-wɔ nhwehwɛmu mu no di dwuma de yɛ sɛnkyerɛnne ahoɔden ho mfonini. RSSI a wogye tom ne-70 dBm anaa nea ɛboro saa. -70 ne -80 ntam no dBm yɛ marginal-ɛbɛyɛ adwuma nanso hwɛ kwan sɛ ɛtɔ mmere bi a ɛbɛdi nkoguo. Ɛyɛ mmerɛw sen -80 dBm no yɛ nea wontumi nnye ntom. SES-imagotag kyerɛ per-label RSSI wɔ wɔn diagnostics mu. Hanshow hwehwɛ sɛ wonya nhwehwɛmu adwinnade a ɛyɛ soronko.
Dwumadi mu Sɔhwɛ
Tu mmirika -store refresh a edi mũ. Nsusuwii a wɔde asi wɔn ani so:99% nkonimdi wɔ mmɔden a edi kan mu, 99.9% akyi a wɔasan abɔ mmɔden bio, a wowie a ennu simma 15 ma sotɔɔ ahorow a wɔakyerɛw so 5,000. Sɛ wɔanbɔ saa nɔma yi a, ɔhaw bi wɔ coverage, interference haw, anaa hardware a asɛe. Mfa wo nsa nhyɛ ase kosi sɛ wubedu ahwehwɛde ahorow no so.
Twe 5% random sample na hwɛ sɛ bo a wɔada no adi no ne fibea nhyehyɛe no hyia.Zero tolerance ma nsɛsoɔ.Mismatch biara kyerɛ binding mfomso anaasɛ integration huammɔdi.
Sɛ wopɛ adwennwen sɔhwɛ a, yɛ flash sale ho mfonini denam labels 50% a wobɛma ayɛ foforo bere koro mu no so. Hwɛ sɛ nhyehyɛe no kɔ so yɛ adwuma na ntonto no yɛ adwuma yiye. Afei nso sɔ failover-twa base station baako mu wɔ active update cycle mu na si so dua sɛ labels a ɛka wɔn no fa coverage firi units a ɛbɛn hɔ. Eyi si so dua sɛ 20% redundancy no yɛ adwuma ankasa.
Bere a Nneɛma Akɔ Bɔne
Saa nsɛm yi ba mpɛn pii.
Labels a enni mmuae:sɛ LED no nhyerɛn da a, wɔannyɛ batere no adwuma-san yɛ dwumadie no nnidiso nnidiso. LED hyerɛn nanso nsakrae biara nni display mu kyerɛ sɛ ebia label no nni range. Ɔyɛkyerɛ foforɔ a ɛyɛ fã bi anaa asɛe no twe adwene si RF ntwitwiridii-sɔ akwan ahodoɔ hwɛ na hwehwɛ 2.4GHz fibea a ɛne wɔn ho wɔn ho di akan. Ɛkame ayɛ sɛ bere nyinaa na nneɛma dedaw a ɛrenyɛ foforo no yɛ ɔhaw a ɛkyekyere wɔ management software no mu.
Base station ho nsɛm:no power LED kyerɛ sɛ PoE nnyɛ nkitahodi-hwɛ sɛ switch port no boa PoE + ankasa na hwɛ cable termination. Tumi nanso softwea dinkyerɛw biara nni hɔ ne ntwamutam nhyehyeɛ-IP dwumadie, ogya fasuo mmara, VLAN nhyehyeɛ. Di nkogu a ɛba bere ne bere mu wɔ beae biako no kyerɛ sɛ wobefi saa gyinabea no so akata ɔhye so. Labels a ɛwɔ zone bi mu nyinaa di nkogu bere koro mu no taa kyerɛ sɛ base station no ankasa wui.
System-level haw ahorow:updates queuing nanso entumi nkɔ labels no kyerɛ nkitahodi a asɛe wɔ server ne base stations ntam-hwɛ network kwan na san hyɛ ESL dwumadie ase. Boɔ a ɛnteɛ ɛmfa ho sɛ fibea data a ɛteɛ no kyerɛ sɛ nkabom sync no asɛe-tutu wɔ API logs mu. Mmuae a ɛyɛ brɛoo kyerɛ database adwumayɛ, titiriw wɔ deployments akɛse so. Bindings a ɛyera kyerɛ sɛ data asɛe-san fi backup ntɛm ara.
Ɛbɛkɔ So Ayɛ Mmirikatu
Amansan nyinaa nsiesie nhyehyɛe biara nni hɔ, nanso sɛ wobu wɔn ani gu nneɛma bi so a, ɛde ɔhaw ahorow ba.
Da biaraɛsɛ sɛ wɔhwɛ so denam nhyehyɛe kɔkɔbɔ a wɔde ma wɔ offline labels, battery a ɛba fam, ne updates a entumi nyɛ adwuma so.Nnawɔtwe biara, hwɛ label tebea amanneɛbɔ mu na hwehwɛ biribiara a ɛnyɛ intanɛt so bɛboro da koro.Ɔsram biara, honam fam hwehwɛ nkyerɛwde a ɛwɔ mmeae a mfutuma wɔ-bakery departments agye dimmɔne-na spot-hwɛ sɛnea ɛyɛ nokware.Afe biara, hwɛ sɛ ebia nsakrae a wɔayɛ wɔ sotɔɔ nhyehyɛe mu no aka base station no kata so na yɛ nhyehyɛe sɛ wɔbɛsesa batere.
Wɔ batere so: labels no nyɛ user-serviceable, enti unit no nyinaa nya sesa bere a battery no sa. Ntwɛn nkogudi ahorow. Sɛ 10% wɔ po so ahyɛn no mu kyerɛ sɛ battery a ɛba fam kɔkɔbɔ a, fa nhyehyɛe a wɔde besi ananmu no to hɔ. Nneɛma a wɔkra ntɛm ara no bo yɛ den na nkyerɛwde a awu bere a wɔrehyɛ nkurɔfo nkuran no de ɔhaw ahorow ba.
Deployment Scale a Wɔde Di Dwuma
Nneɛma nketenkete a wɔde di dwumaase 500 labels hia 1-2 base stations, da koro installation ne nnipa baanu, ne cloud hosting. Nnwuma pa a wɔde fi ase ma akuw a wɔyɛ foforo wɔ ESL mu.
Medium deployments a wɔde di dwumaefi 500 kosi 3,000 labels hwehwɛ sɛ 3-8 base stations, nnafua 2-4 a nnipa 4-6 kuw, ne adwuma nhyehyɛe ankasa.
Nneɛma akɛse a wɔde di dwuma wɔ format storesne 3,000-15,000 labels no yɛ soronko. Yɛ nhyehyɛe ma base stations 8-25, adapɛn 1-2, akuw a emufo yɛ 8-12, ne on-premise servers ma ahotoso. Nnwuma a wɔde di dwuma nkakrankakra ne adwuma no sohwɛ a wɔatu wɔn ho ama no bɛyɛ nea ɛho hia.
Nnwumakuw nseniabɛboro 15,000 labels-flagships, supermarkets akɛse-kyerɛ 25+ base stations, adapɛn 2-4, 15+ nnipa akuw a wɔwɔ dwumadi titiriw, ne infrastructure a ɛho nhia. Nya mmoa a osuahu wom ma deployment a edi kan wɔ saa scale yi so.
Nhwehwɛmu a Wɔde Hwɛ Nneɛma a Ɛyɛ Paara
Ansa na wubefi ase no:site nhwehwɛmu a wɔde mfonini awie, RF interference map, base station gyinabea ahorow a wɔahyɛ no agyirae, network infrastructure a wɔagye atom, label dodow a wɔde contingency ahyɛ mu den, kuw no bɔɔ amanneɛ, sotɔɔ mpanyimfo bɔɔ amanneɛ.
Bere a wɔrehyehyɛ no:base stations a ɛwɔ sorokɔ a ɛfata, cables a wɔsɔɔ hwɛe ansa na wɔagyae, base station biara a wɔasi so dua wɔ intanɛt so ansa na wɔakɔ nea edi hɔ no so, activations a wɔagye atom, bindings a wɔagye atom, zone refresh sɔhwɛ a ɛtwam 99%+, coverage gaps a wɔadi ho dwuma.
Bere a wɔawie no:full store refresh under 15 minutes, 99.9% success rate a wɔanya, ɛboɔ a ɛyɛ pɛpɛɛpɛ akontabuo a wɔatwa mu, wɔadi nkabom ho adanseɛ, wɔatete adwumayɛfoɔ, wɔde nkrataa akɔma, wɔasi mmoa nkitahodiɛ so dua, wɔde nsiesie nhyehyɛeɛ asi hɔ.
